PCB Design Issues

Sun Jan 25, 2015 12:44 pm

We are using the PADS logic viewer to edit the vocore layout pcb and getting an error message when the vocore asc file is imported.

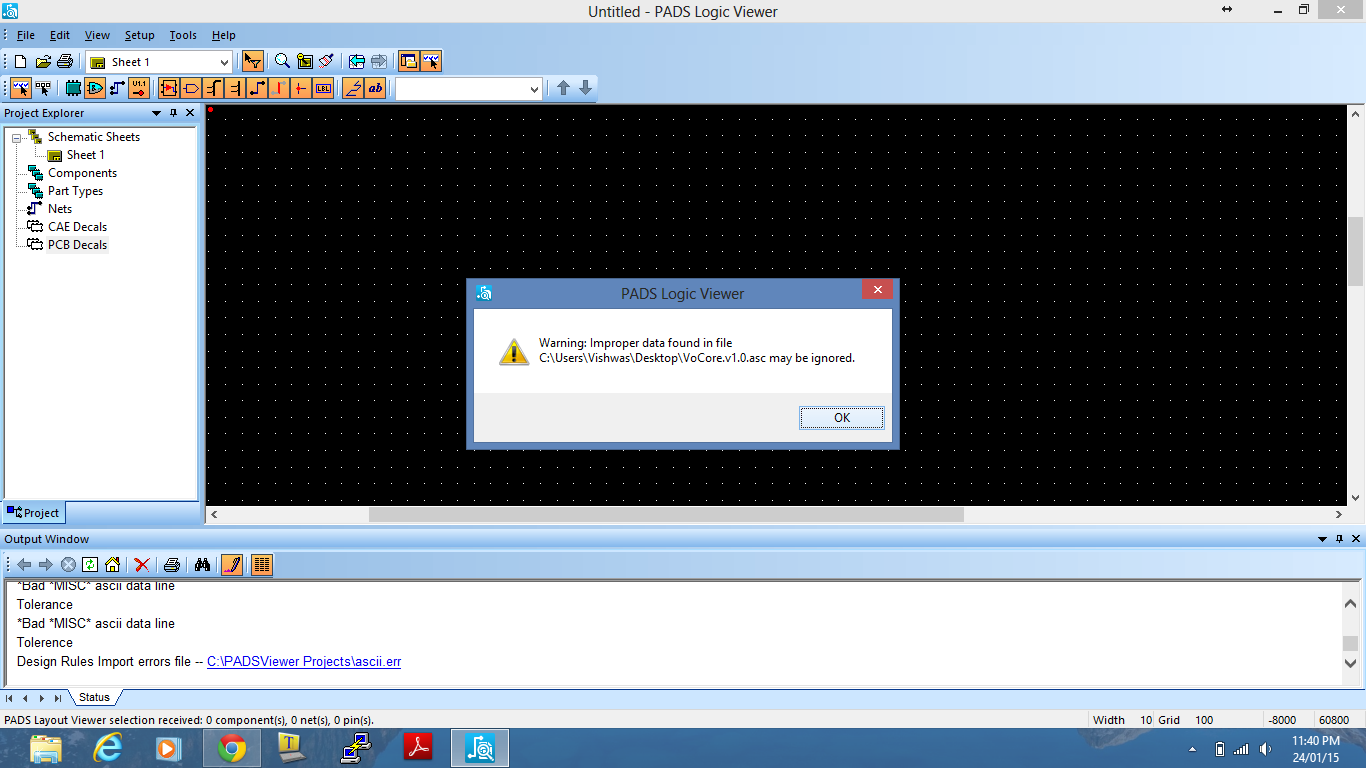

PADS logic error.png
PADS logic viewer error
PADS logic error.png (119.36 KiB) Viewed 3209 times

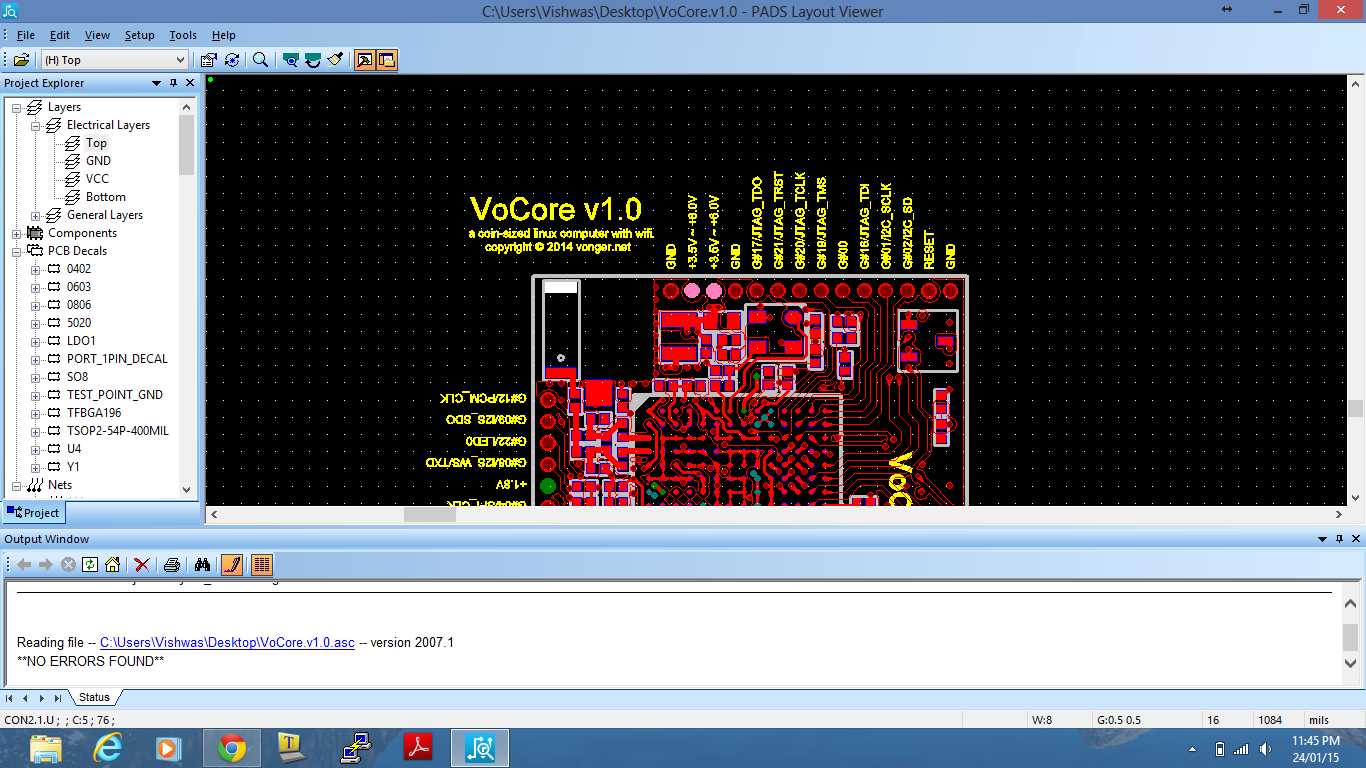

And when using PADS Layout viewer the schematic shows up but it is uneditable.
PADS layout not editable.png
PADS layout viewer
PADS layout not editable.png (142.88 KiB) Viewed 3209 times

The attachments contains screenshots of the same.
I kindly request you to help us on this regard.

Thank You
