My own dock for vocore, USB powered and Build-in TTL

[qiqiji]

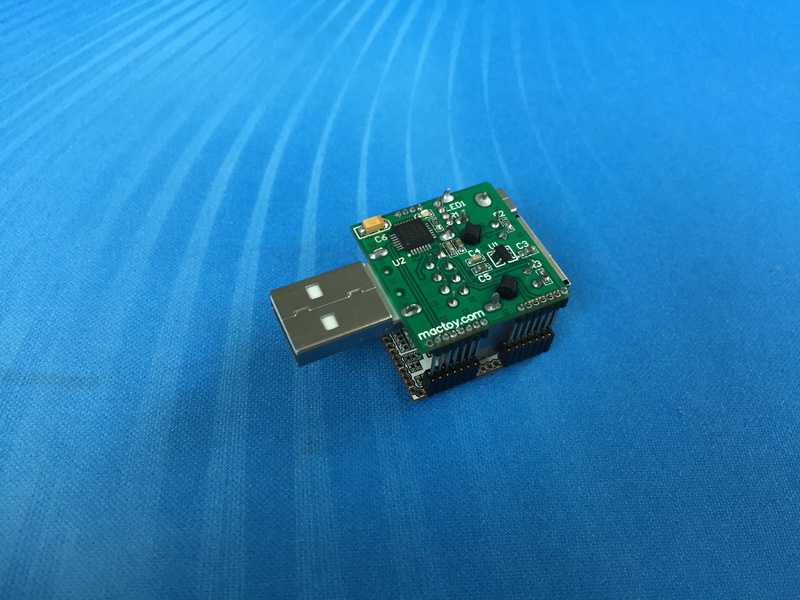

Mod form official dock

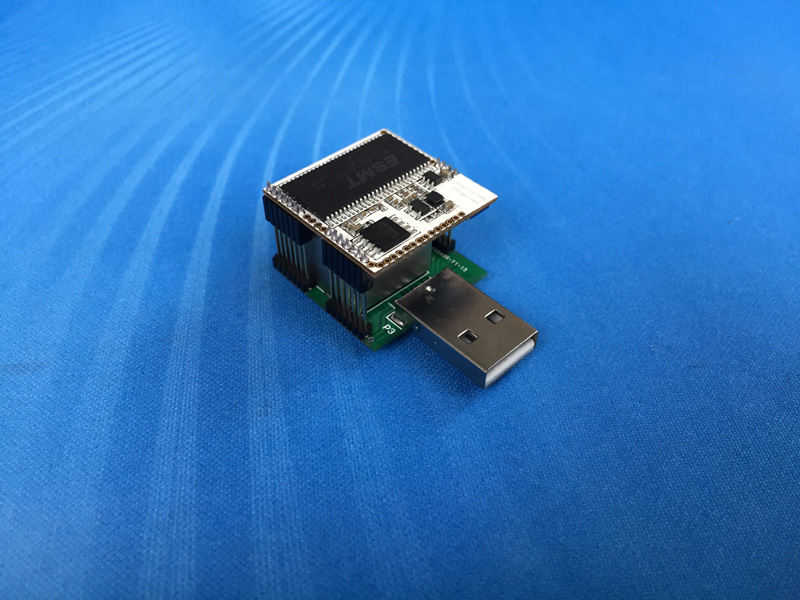

Firstly, change Power souse form Micro USB to USB A male, perfect for traveling, because you always carry a usb changer, plug vocore and hotel's cable you got WiFi, and you still can charge you phone through usb port on the dock. PS: if use Micro USB to power vocore, such a small thing with a long and hard cable, how strange..

Secondly, build-in CP2012 chip for TTL, when you plug it into a computer, you can use TTL to debug or anything you want




[qiqiji]

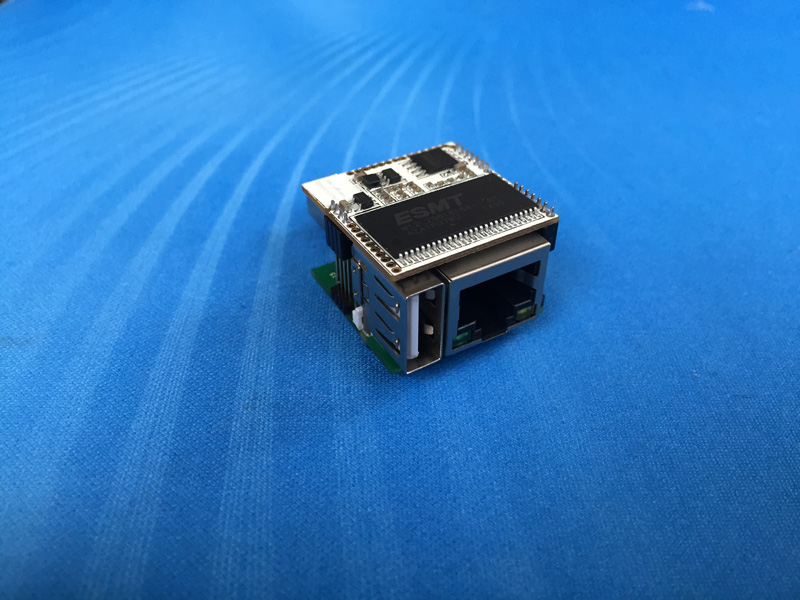

RJ45 and USB ports are same as officially dock

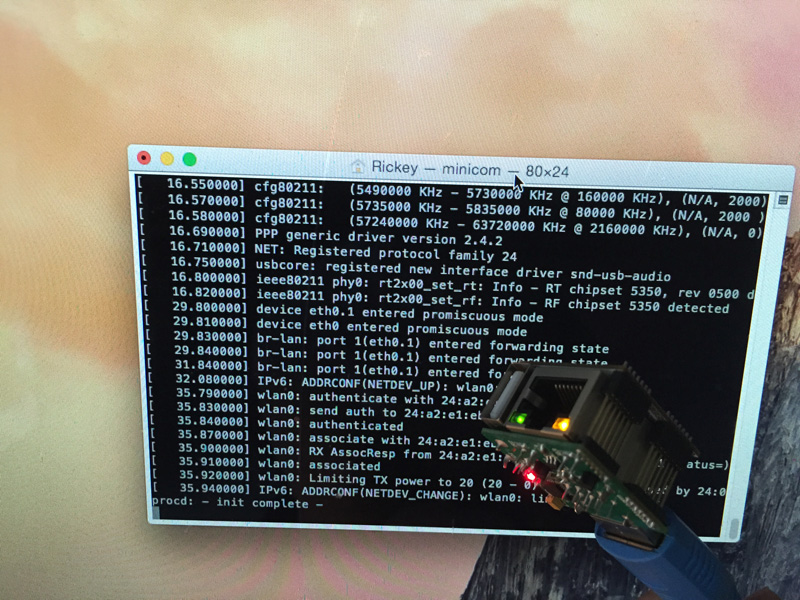

TTL in action


[qiqiji]

it's will have a case too, still not ready

[netomx]

Nice! Will you sell them on Tindie?

[qiqiji]

Nice! Will you sell them on Tindie?

I'm from china, let me check Tindie

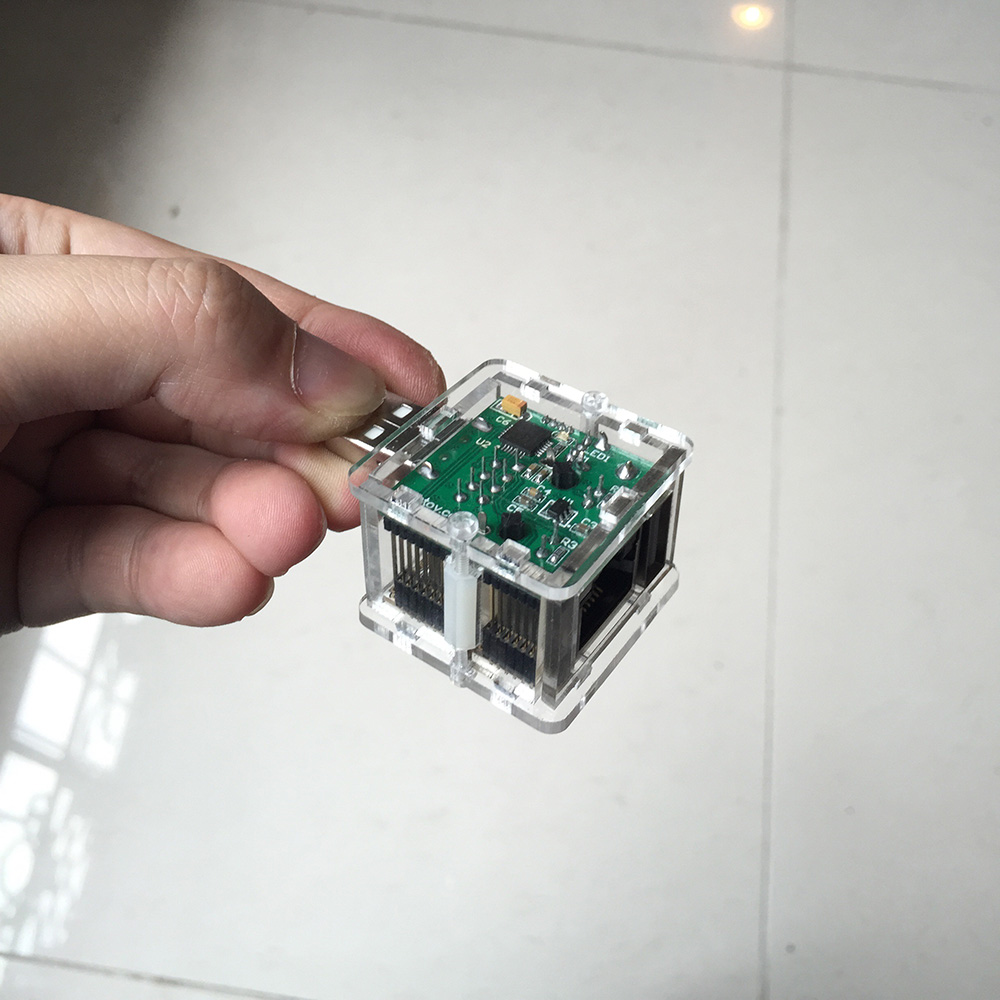

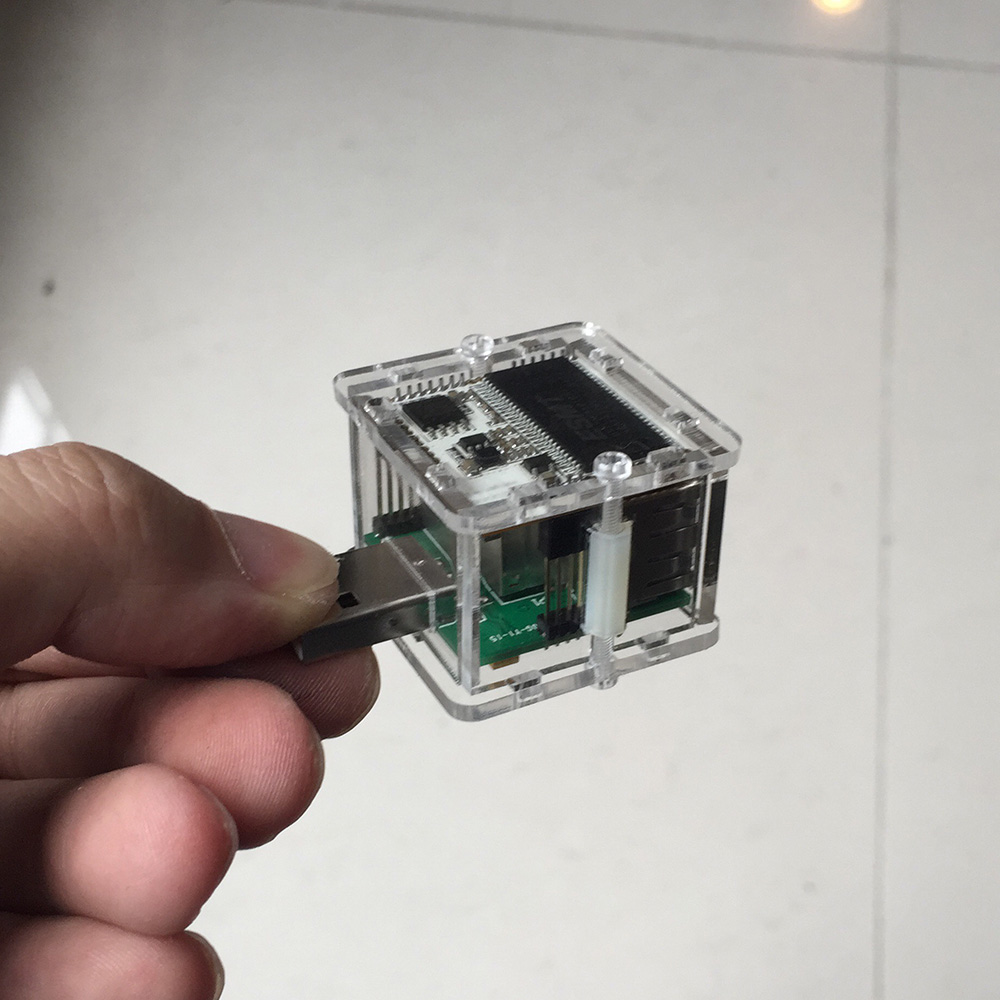

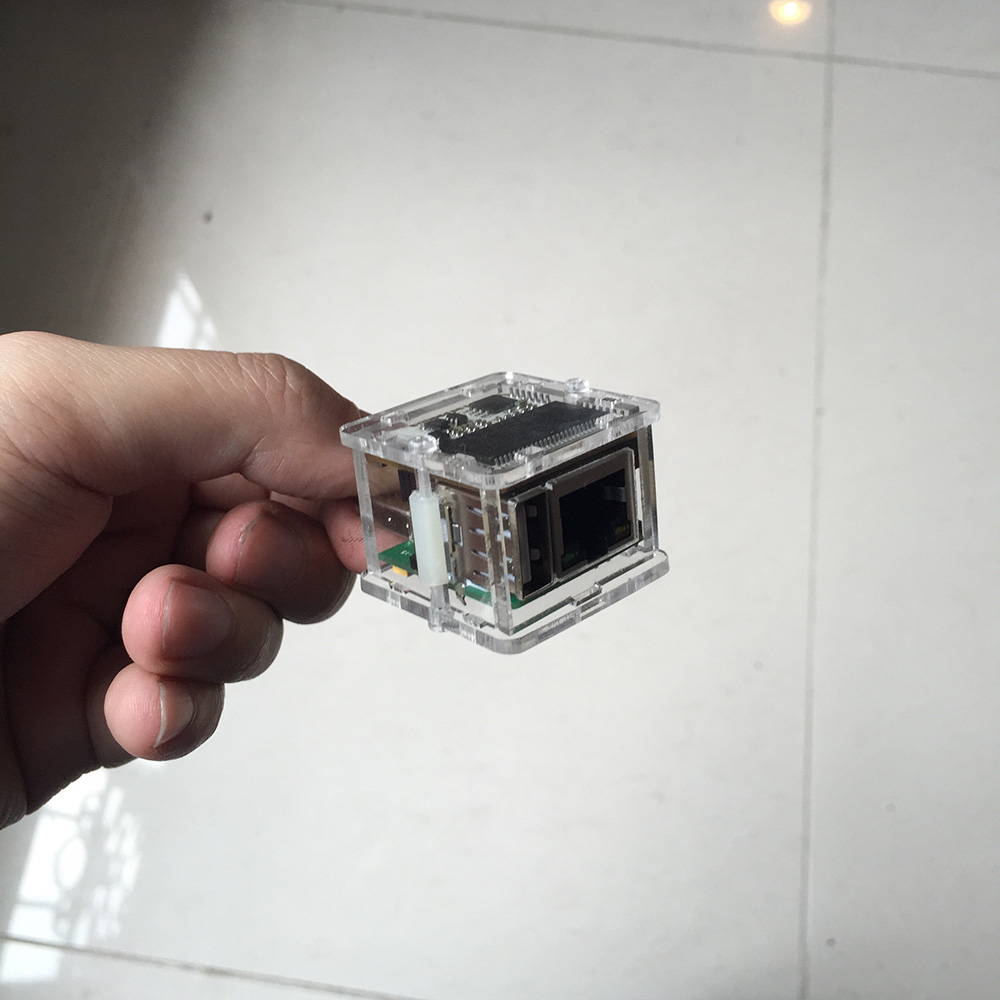

And here is the first look of case ( demo is clear ver, but i will make half-clear smoke gray color, maybe other colors too)




[qiqiji]

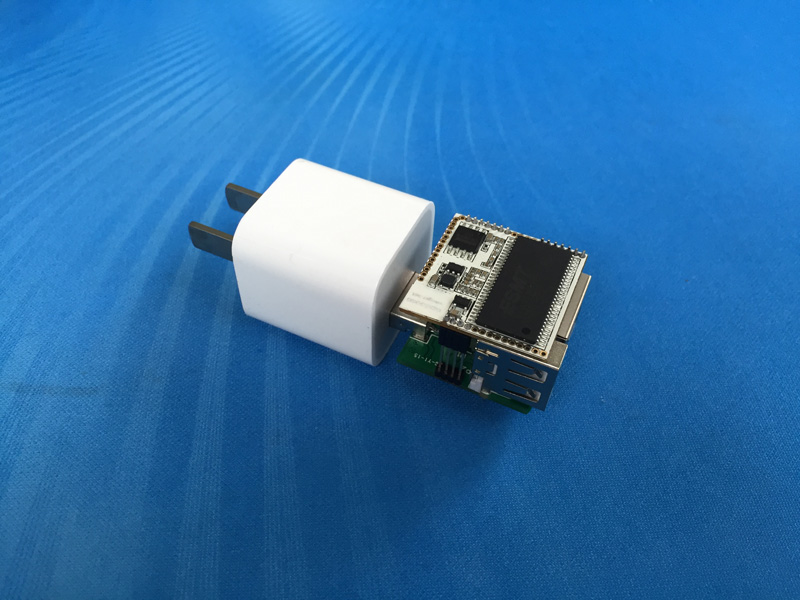

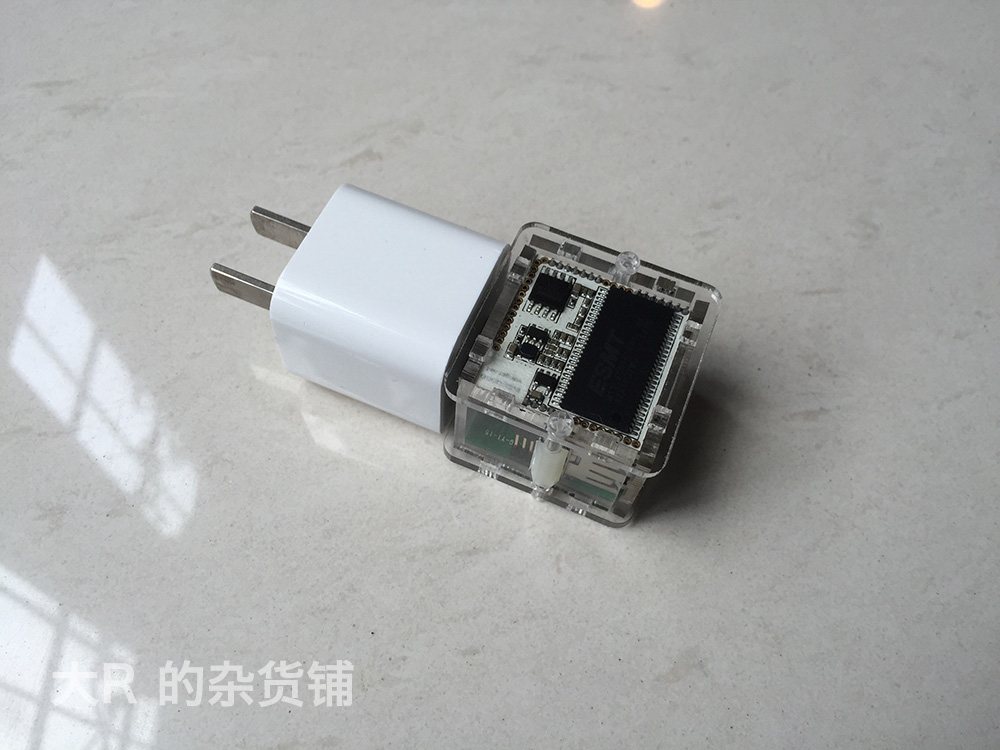

plug into the wall like this


[Vonger]

Once I made a dock with CP2102, but grace way to put the pins Glad to see you did this.

[ronlaws86]

I love this!, really wish there was a less destructive way to connect ttl to the vocore on the default dock, the tiny pins make it very tricky and it appears the tx and rx pins are in use for something on the dock2, not sure what though. a couple of larger pins to connect something to would of been nice at least,
